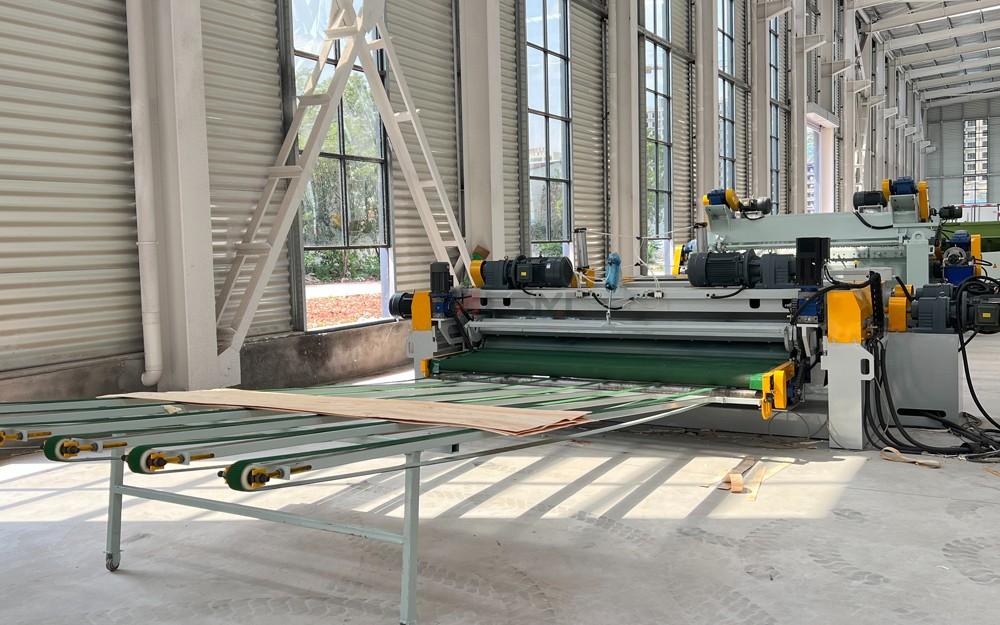

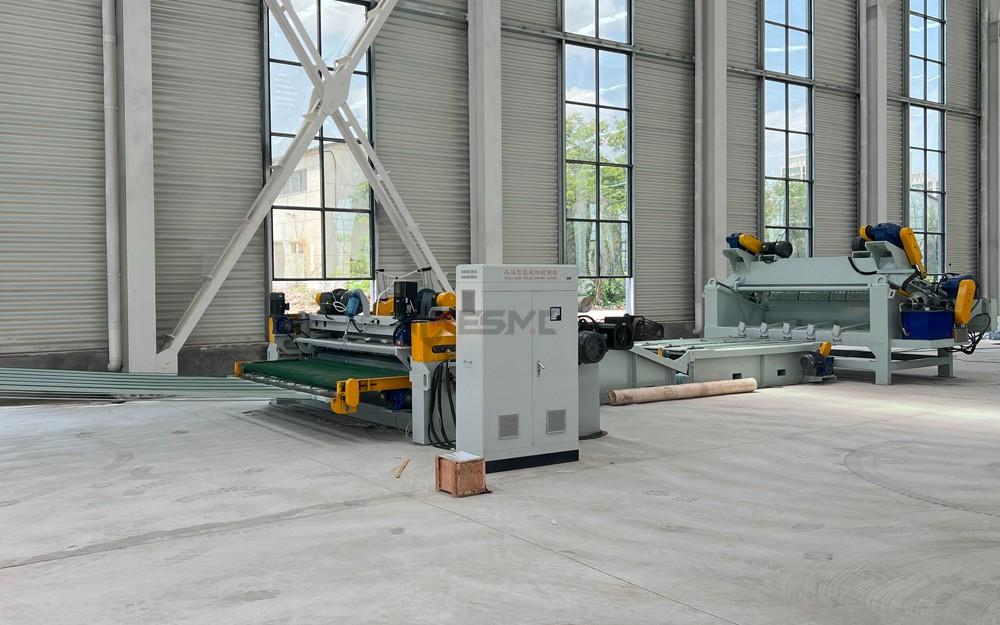

ESMC 8 FOOT SIMPLE TYPE VENEER SPINDLE LESS PEELING LINE

Specification
Log Diamter： 500/600 mm
Veneer Thickness： 0.5-4 mm
Rotary Cut Speed： 30-100 m/min
Knife Carriage Motor： 15 kw
Double Roll Motor： 11kw*2
Single Roll Motor： 11kw*2
Knife Size： 2750x180x16 mm
Feeding Lead Screw Diameter： 90 mm

The ESMC 8 Foot Simple Type Veneer Spindle Less Line presents an upgraded 8ft Heavy Duty Veneer Spindless Lathe, with more smooth production - for better quality plywood veneer production workflows.

Take with an intelligent PLC control system and a precision servo motor setup, it excels at uniformly peeling diverse logs into veneers with accurate thicknesses. Besides, it adjusts the peeling pressure, guaranteeing a consistent output of high level veneers. Developing with 20 years veneer plywood industry experience from the Linyi plywood making machine center, this lathe line boasts stable operational performance and quality. The accuracy of veneer peeling and yields veneers with a smooth surface finishing is also well confirmed.

Model: ES260XQ SIMPLE TYPE VENEER PEELING LINE

MODEL	8 FOOT, ES260XQ-50B	4 FOOT, ES130XQ-50B
LOG LENGTH	2600 MM	1500 MM
VENEER THICKNESS	0.5-4 MM	0.5-4 MM
KNIFE SIZE	2750X180X16 MM	1500X180X16 MM
ROTARY PEELING SPEED	30-100 M/MIN	30-100 M/MIN
SINGLE ROLL POWER	11KW * 2 UNITS	7.5KW*2 UNITS
DOUBLE ROLL POWER	7.5KW *2 UNITS	7.5KW*2 UNITS
KNIFE CARRIAGE FEED POWER	11/15 KW	7.5/11 KW
GUIDE RAIL TYPE	LINEAR TYPE/ ROUND	LINEAR TYPE/ROUND
WEIGHT	about 8000 KG (CUSTOMIZE)	anout 5000 KG (CUSTOMIZE)

Machine Details

Speed and Pressure Adaptability: The lathe's PEEL SPEED is adjustable, making it well - suited for logs with vary degrees of hardness and density.

The peeling pressure is automatically calibrated according to the log diameter,with the auxiliary guide rail, ensuring steady and reliable operation throughout the process.

Efficient Plywood Core Veneer Production: It has 2 in 1 design achieve high-speed peeling and veneer cutting at same time.-trims down production costs and ramps up the veneer output, making it a highly productive production line.

Upgraded Strengthen Structure Frame: bigger leading screws and reinforced linear type guide rails, the lathe ensures smooth and durable operation over extended periods. Its robust hard- tooth- surface gearbox, hard treatment rubbing rollers confirm good performance for both hard and soft logs.

User - Friendly Operation A touch - screen interface, integrated with the PLC system, simplifies the operation and setup procedures. Cuts down on labor expenses and time costs overall production adjusting,

Convenient Knife System The knife - holding mechanism offers a choice between mechanical fixing and high-grade hydraulic knife clamping. Give more convenient knife replacement and grinding, saving production time.

Machine Features

Suits Different Kind Log Peeling: This simple type veneer peeling lathe line can well suit peeling a wide range of logs, hard or soft, of different diameter.

Adjustable speed enables the production of high quality veneers, even when dealing with logs of poor condition like big and small diameter in one logs.etc

Precise Thickness Control: It ensures exceptional accuracy in the peeling thickness of veneer sheets, meeting the developing requirements for high precision production for top quality veneers.

High Speed Adjusting Automatic Peeling: automatic high speed peeling combined with optimally adjusted peeling pressure, it results in veneers of a smooth surface and uniform thickness.

Production Line Compatibility: The lathe can be seamless integrated into semi-automatic or full auto veneer peeling production lines. According to the veneer production situation or factory conditions- different production scales and needs.

improved strengthen model, higher standard components	stable veneer peeling performance, better veneers

After-Sale Services

Pre-sale Services

1. Provide free consultation to assist in selecting suitable veneer making or plywood working machines.

2. Develop a full - set plywood and veneer production solution based on production improvement or equipment upgrading needs, and offer machine drawings.

3. Furnish detailed machine technical parameters and quotations. Upon mutual confirmation, sign the purchase order (PO) or invoice.

4. Invite customers to visit workshops and witness plywood machine testing.

Services during Sales

1. Keep customers updated on the machinery manufacturing process.

2. Conduct strict quality inspection during each manufacturing and assembly stage, and perform detailed testing before delivery.

3. Offer free training on machine operation and usage, and provide user manuals to help customers master the skills.

4. Confirm custom clearance documents and prepare for delivery.

After-sale Services

1. Have engineers on standby 24/7 to solve problems promptly.

2. Provide full - life spare parts and online machine debugging support.

3. Dispatch professional engineers for installation and training services.

4 Offer overseas services for machine upgrading and maintenance.
