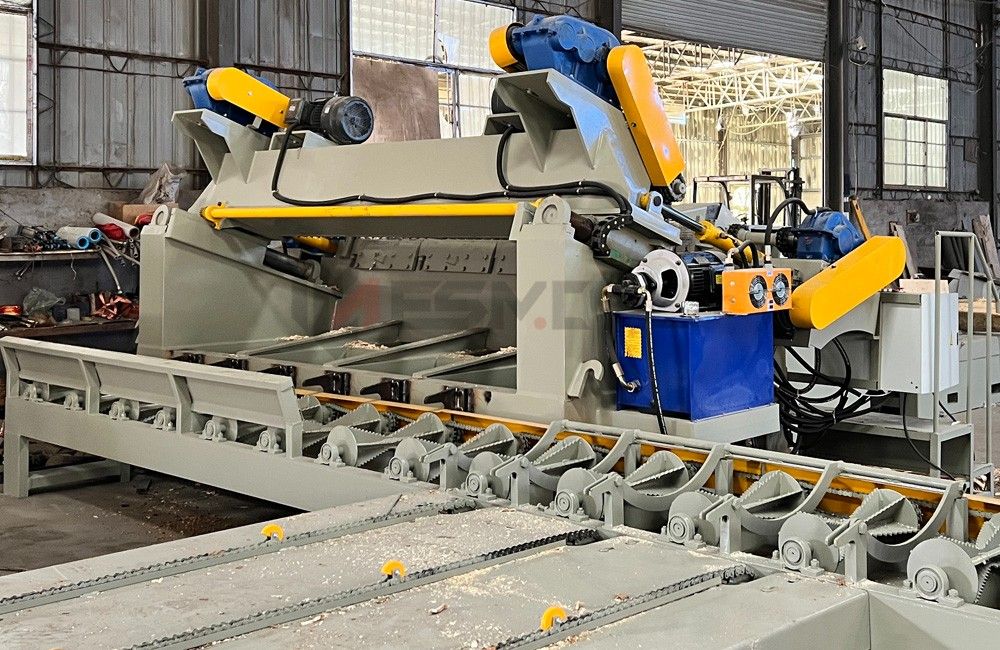

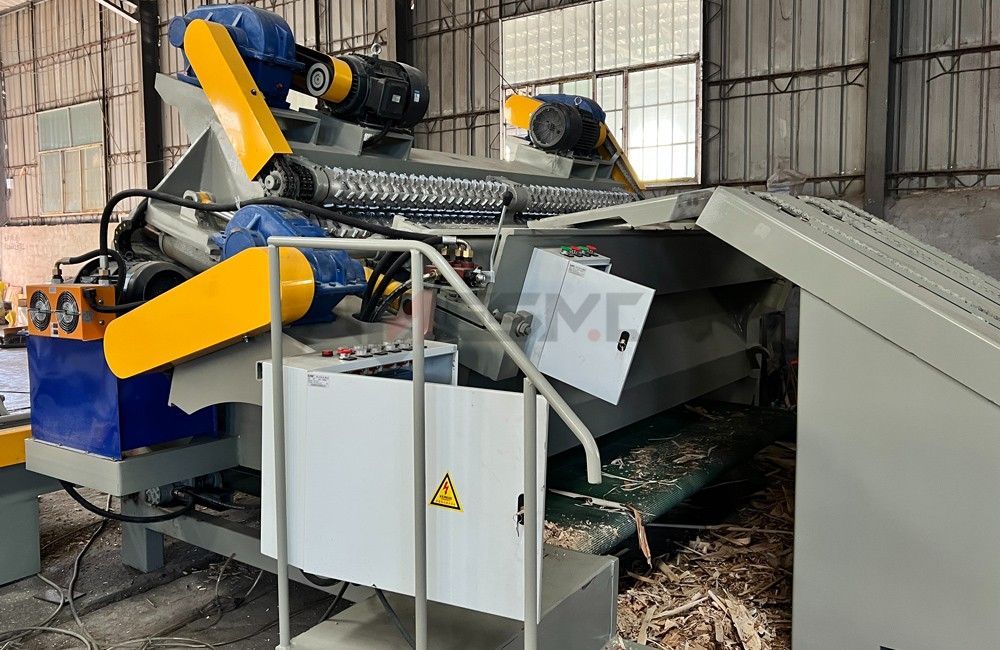

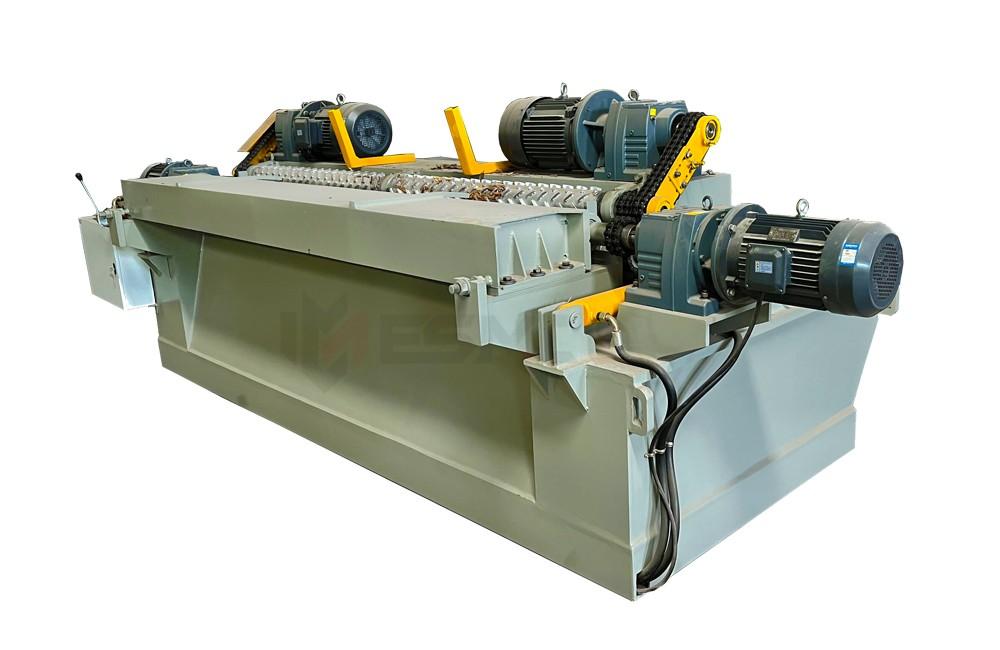

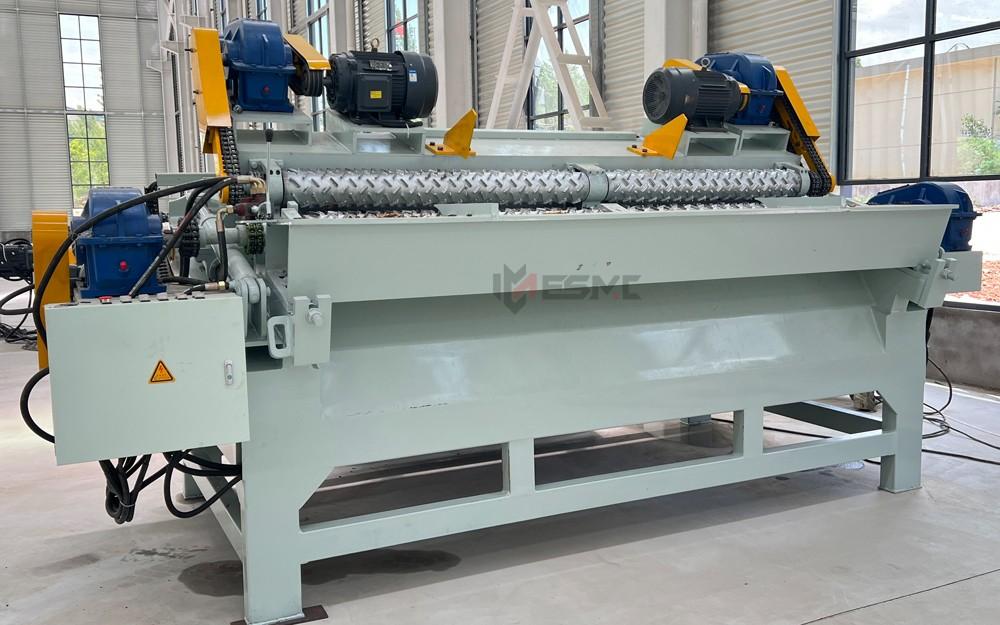

8FT Log Debarking and Rounding Machine for Plywood Production

Specification
MODEL： ESM-260HD-60A
Log Diameter： 80-600 mm
Log Length.Max.： 2600 mm
Rub Roller Diameter： 180 mm
Single Roller Power： 11 kw
Double Roller Power： 11 kw
Hydraulic System Power： 5.5 kw
Weight： abt. 5000 kg

The Automatic Log Debarking and Rounding Machine is an essential pre-processing equipment for plywood production-log prepare procedure. It efficiently removes bark and rounds raw logs to ensure optimal performance in subsequent veneer peeling operations.

Efficient | Durable | Simple Control

This heavy-duty machine is suitable for a variety of hardwood and softwood species such as eucalyptus, pine,poplar, birch, beech,rubber wood.etc

Designed with advanced hydraulic drive and double-roller structure, it enhances debarking speed, reduces labor costs, and improves veneer yield and quality.

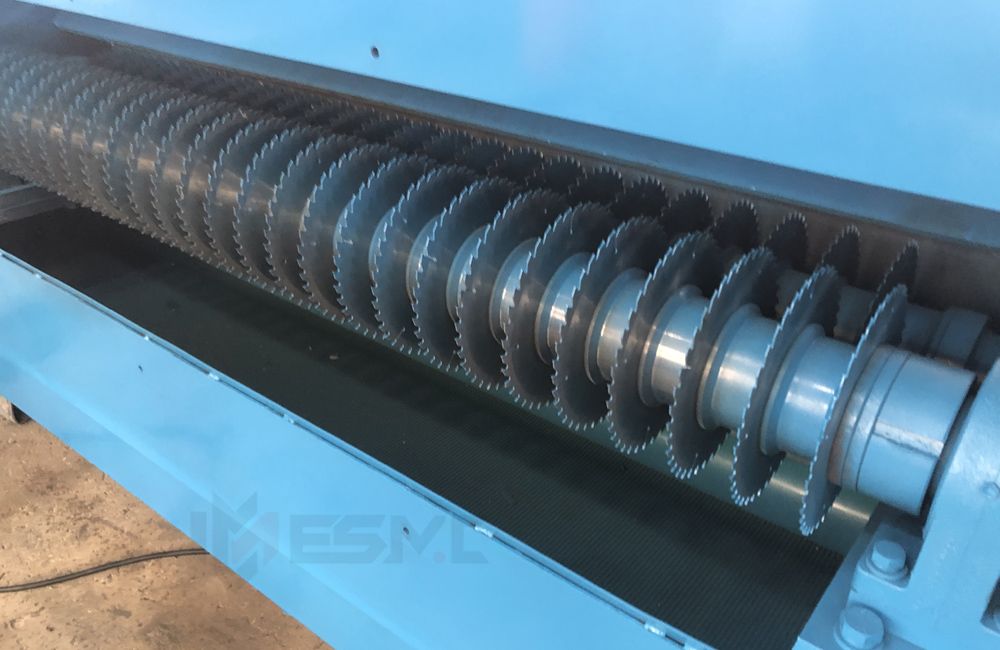

heavy duty log debarker 01.jpg

heavy duty debarking 02.jpg

Key Features:

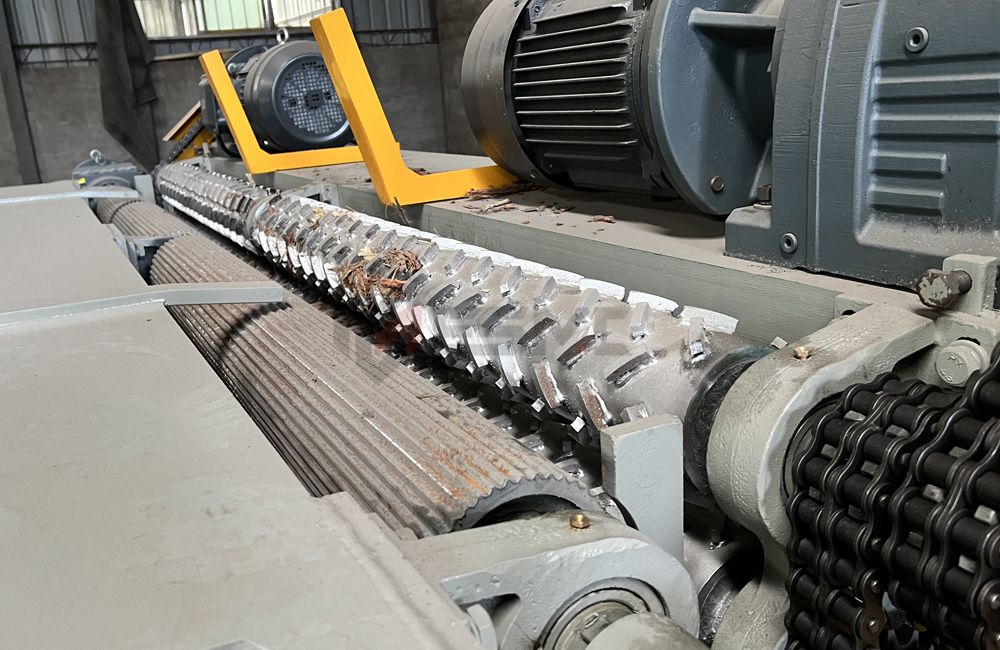

✅ Double Roller Forward/Backward System with knife installed on single roller carriage.
Enables smooth wood loading and unloading, greatly improving debarking efficiency.

✅ Hydraulic Feeding System
Adjustable pressure accommodates logs of different hardness and density for stable and uniform feeding.

✅ Customizable Dimensions
Machine width and opening stroke can be tailored to specific production needs.

✅ High Efficiency and Capacity
Equipped with enlarged big grains rollers and dual power drives, capable of handling both hardwood and softwood with peeling speeds up to 40–50 m/min.

✅ Heavy-Duty Frame Construction
Reinforced welded steel frame ensures long-term stability and 1-2 shifts operation. The hydraulic station includes an oil cooling system to prevent overheating and maintain cylinder integrity.

✅ Multi-Machine Integration
One debarker can efficiently supply two or even three veneer peeling lines, significantly reducing manpower.

✅ Optional Wood Barks Crushing Function
Debarking off waste can be processed for reuse, improving material utilization and sustainability.

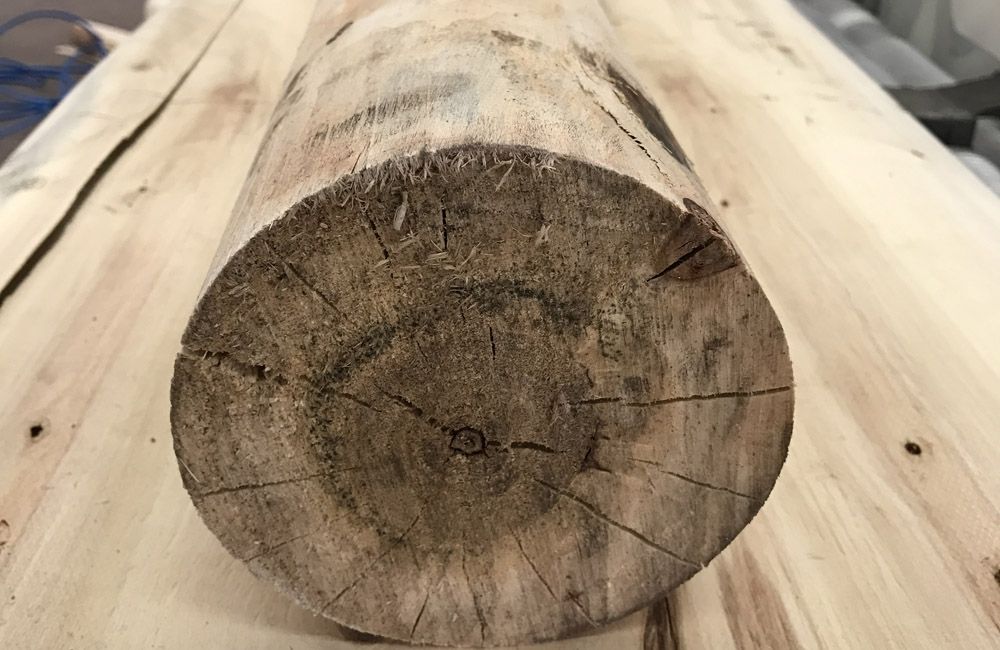

wood round logs.jpg

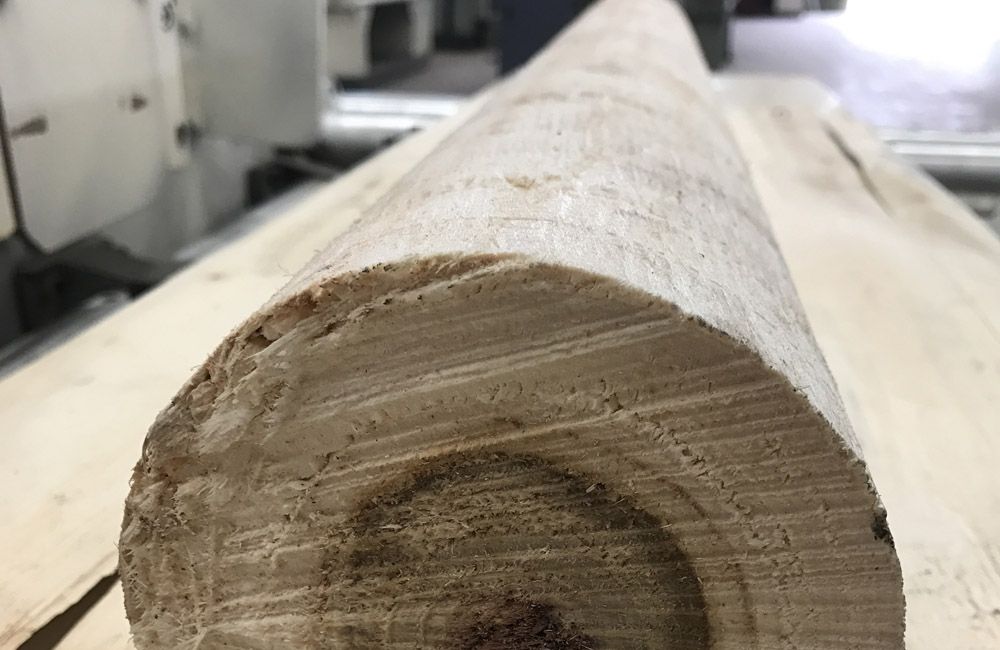

round logs.jpg

Types Available:

4ft or 8ft Standard Debarking Machine, 4ft Heavy-Duty Upgraded Debarking Machine with bigger structure and power, NC type Hydraulic Log Debarker with log diameter setting and auto works.

Applications:

Plywood factories for core veneer and face veneer processing.

Suitable for eucalyptus, pine,rubber wood, and more.

Pre-peeling preparation for spindle-less rotary lathes.

Customer Feedback:

Clients have praised the machine for:

Stable long-hour performance

Superior veneer quality after debarking

Easy operation and minimal maintenance

Great labor savings and operational efficiency

Why Choose Our Debarking Machine?

Engineered for continuous heavy-duty operation

Designed for fast setup and easy control

Suitable for modern plywood production lines

Customized solutions available for your wood type and output capacity

Let me know if you'd like this machine for your production.and need quotations to make the research.

Please feel free to contact for the heavy duty log debarking machine from 4ft to 10 ft with different models. We will trybest make the good and stable veneer plywoodworking machine to you. And offer the full term after sale service. ESMC appreciate your support and trust.

After Sale :

Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.

Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.

4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
