MACHINERY INTRODUCTION
Machine Principle for ESMC brand Non-chuck Type High Speed Rotary Veneer Peeling Lathe
This spindleless peeling machine efficiently transforms logs into veneer sheets. The log is rotated by the transmission system, and the friction between the knife and the log drives the cutting process.
As the knife applies pressure, the log is gradually peeled into thin face or thick core veneer layers.
The lathe adjusts the feed speed of the knife according to the changing diameter of the log: slower at the start when the log is large, and faster as the log becomes thinner. This ensures smooth and consistent veneer thickness, making it ideal for producing quality plywood core veneers. The automatic knife adjustment system optimizes the timber veneers cutting precision, ensuring a high-quality veneer surface throughout the peeling process.

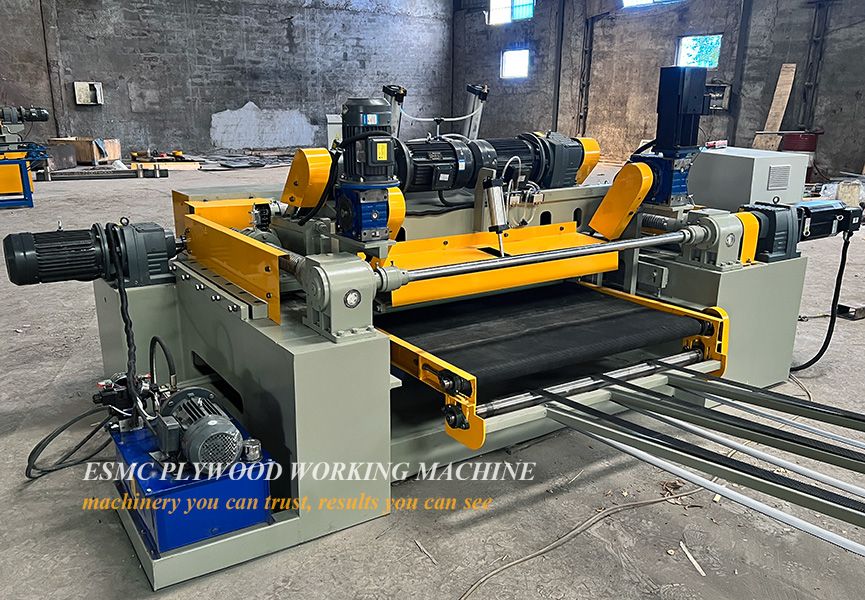

4 FT high speed wood log peeling lathe.
|
|
|
|
|
|
|
|
TECHNICAL PARAMETERS
| MODEL: ESM-150D2 | UNIT | PARAMETERS |
| Log diameter | mm |
30-550 |
| Log length | mm | 900-1300 |
| Veneer thickness | mm | 0.5-3.6 |
| Peeling speed | m/min | 30-110 |
| Final log core | mm | 30 |
| Carriage lead screw diameter | mm | 90 |
| Carriage motor power | kw | 11, servo motor |
| Single roll power | kw | 7.5, 2 units |
| Double roll power | kw | 7.5, 2 units |
| Veneer cutting power | kw | 4, servo motor |
| Auto knife gap adjust | YES | |
| Hydraulic auto knife holder | YES | |
| High speed adjust | YES |
Peeling machine and other other veneer working machine and plywood working machinery contact Information:
WhatsApp: +8615854986399 E-mail: info@plywoodworking.com, woodmachine@hotmail.com dear customers if you have needs of veneer making and plywood making machinery, feel free to tell your needs and detail requirements about machine, we will in time to make plan and send you quotation.
MACHINERY DETAILS
|
|
|
|
|
|

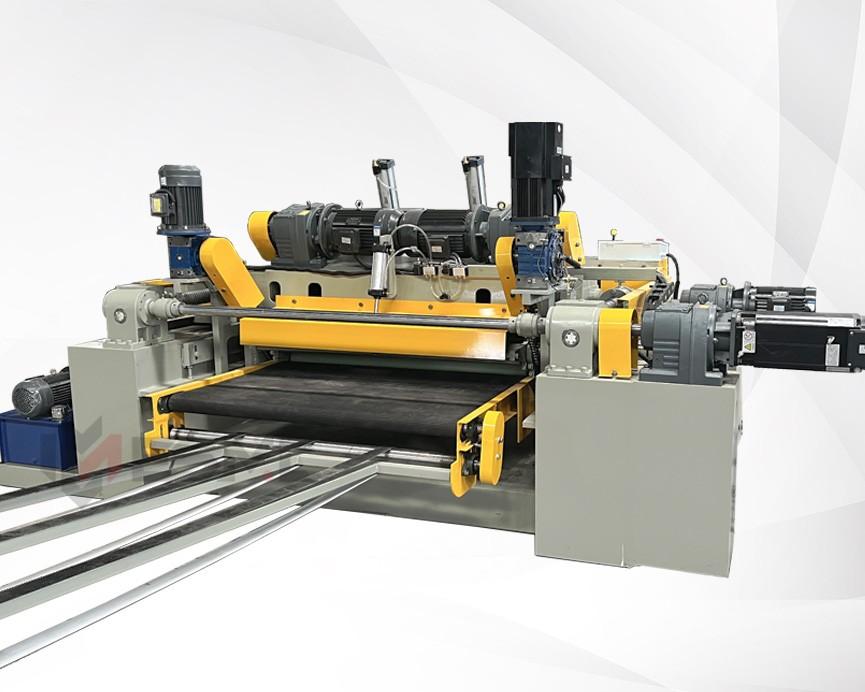

High-Performance Veneer Peeling and Cutting Machine
Our 2-in-one veneer peeling and cutting machine eliminates the need for an external rotary veneer cutting machine. It is specifically designed for peeling a wide range of hardwoods and softwoods, such as eucalyptus, pine, poplar, birch, rubberwood, and maple, with a diameter range of 30mm to 500mm (customizable up to 700mm).
With its pressure-adjusting structure, this machine ensures uniform veneer peeling, regardless of wood type or diameter. The integration of a frequency inverter and servo motor enables precise control of peeling speed, significantly improving the veneer working efficiency, smoothness, and uniformity.
This peeler machine heavy-duty structure frame includes a 90mm alloy bigger diameter feed screw and dovetail guide rail for enhanced stability, reduced noise, and higher precision. For further working performance improvements, an optional linear guide rail upgrade is available to achieve even better veneer quality.
To develop the durability and service longevity, use laser-cut the thick steel plates to reinforce the machine’s frame and knife carrisge. The machine primary components and spare parts are precision-treated in a CNC machining center to ensure surface flatness and structural integrity. Additionally, the rotary peeling lathe single and double rollers are made from high-strength 40CR steel, featuring precision-engraved patterns with hardened and tempered surfaces to maximize the wear resistance and log hold friction during peeling.
Equipped with high standard electrical components and parts like variable frequency drives (VFDs) and PLC control systems, along with high-quality motors and gear reducers, this machine guarantees exceptional reliability. Its enhanced high speed alloy cutting blades and reinforced rubber rollers ensure long-lasting performance, while reducing maintenance and downtime.
Key Features:
– Reinforced frame structure and precision-machined components and spare parts for better durability.
– Bigger feed screw and machine tool-grade guide rail (or optional linear guide rail) for high-precision and stable operation.
– Adjustable high-speed peeling for various wood types, ensuring premium veneer quality.
– Hydraulic knife clamping system for quick blade changes, saving time and labor.
– Automatic pressure adjustment system, allowing for quick changes in veneer thickness with automatic knife gap regulation.
We are dedicated to designing and manufacturing high-quality, reliable veneer peeling machines that enhance productivity and efficiency for plywood production. With our machines, you’ll enjoy long-term reliability, reduced maintenance, and increased profitability.Also we will offer you full set full time after sale service confirm you will no need worry the machine maintance after years using.
Experience efficiency and durability with every peel. Once you choose us, we offer lifetime support and service for all your veneer peeling and plywood production needs.
DELIVERY
|
|
|
|
RELATED PLYWOOD WORKING MACHINERY
To set up a complete veneer rotary making and plywood production line, you would need a variety of specialized machinery. These machines facilitate the process of converting logs into veneer sheets and further processing those sheets into plywood. Here’s a list of essential machinery for both veneer rotary making and plywood working:
1. Log Handling and Preparation:
-Log Cut off Machine
– Log Debarking Machine and Rounding Machine
2. Veneer Rotary Production:
– Veneer Peeling Lathe – Veneer Cutting Machine- Veneer Dryer, hot platen type dryer or roller type dryer machine or mesh type drying line.
– Roller Dryer and Mesh Dryerare common types.
– Veneer Stacker
3. Plywood Manufacturing Machines:
– Core Composer (Veneer Composer)
– Plywood Glue Spreader
– Plywood Layup Assemble Line
– Plywood Cold Press Machine
– Hot Press Machine
– Edge Trimming Saw
– Sanding Machine
– Plywood Putty Spreading Machine
– Film Face Laminating Hot Press
– Packge Machine
4. Auxiliary Equipment:
– Knife Grinder
– Conveyors and Rollers
– Dust Collection System
– Lifting Platform and Turn Over Machine
– Industry Boilers for Heating Supply.
5. Additional Options:
– Plywood Sizing Machine
– Plywood Surface Coating/Polishing Machine
Each machine plays a important role in the production process, from initial log handling to the final stages of finishing and packaging plywood. But depending on different plywood working technique, the exact machine is optional.
Please contact us to make the production plan and solutions for exact kind of plywood.
