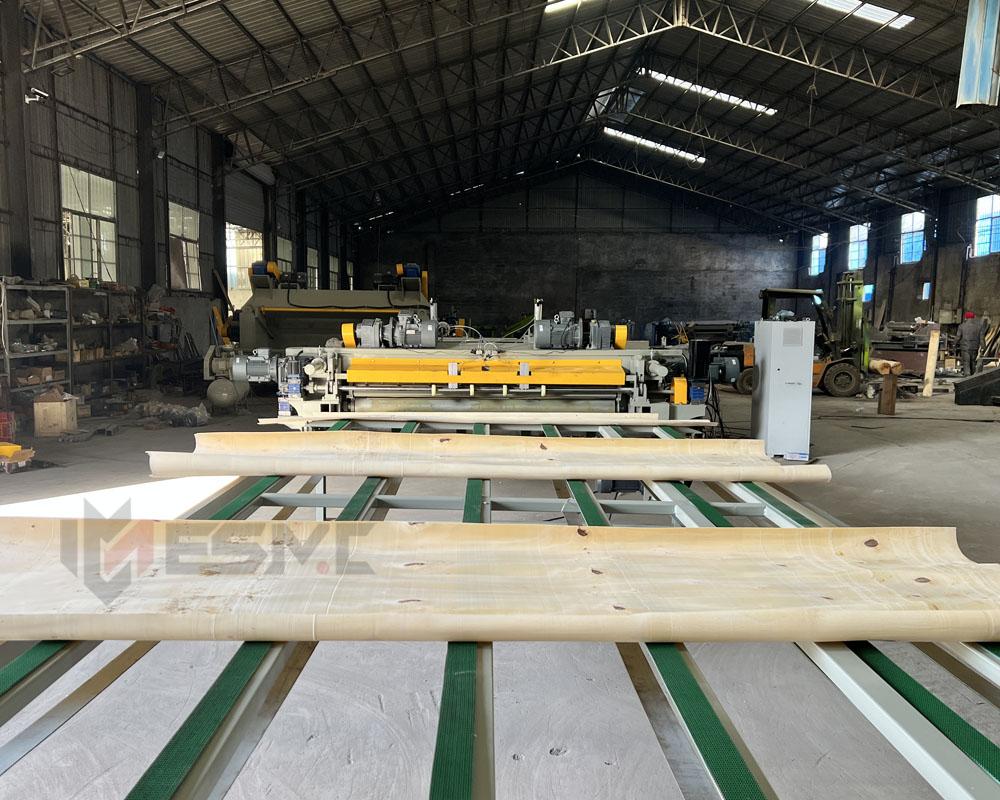

Equipped with PLC smart control and an accurate servo motor system, it can peel different logs into veneers of set thickness at a constant speed, while adaptively adjusting peeling pressure to ensure high – quality output.
With mature technology derived from the Linyi plywood making machine center, this lathe features stable performance and high quality, enhancing veneer peeling accuracy and producing smoother surface veneers.
Model: ES260XQ-50B. Strength, Stability, and Quality.
| MODEL | 8 FOOT, ES260XQ-50B | 4 FOOT, ES130XQ-50B |
| LOG LENGTH | 2600 MM | 1500 MM |
| VENEER THICKNESS | 0.5-4 MM | 0.5-4 MM |
| KNIFE SIZE | 2750X180X16 MM | 1500X180X16 MM |
| ROTARY PEELING SPEED | 30-100 M/MIN | 30-100 M/MIN |
| SINGLE ROLL POWER | 11KW * 2 UNITS | 7.5KW*2 UNITS |
| DOUBLE ROLL POWER | 7.5KW *2 UNITS | 7.5KW*2 UNITS |
| KNIFE CARRIAGE FEED POWER | 11/15 KW | 7.5/11 KW |
| GUIDE RAIL TYPE | LINEAR TYPE/ ROUND | LINEAR TYPE/ROUND |
| WEIGHT | about 8000 KG (CUSTOMIZE) | anout 5000 KG (CUSTOMIZE) |

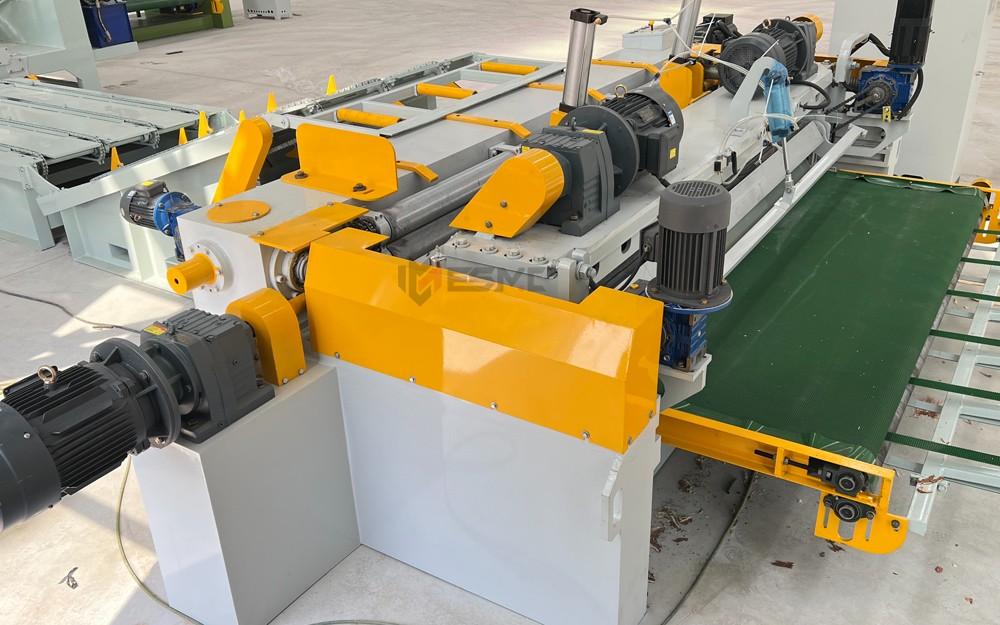

Machine Details
–Speed and Pressure Adaptability:
The adjustable speed caters to logs of different hardness and density levels. Pressure is matched according to log diameter, ensuring stable performance during operation.
– Efficient Production:
Capable of high – speed peeling and cutting veneers simultaneously, it saves costs and boosts veneer output significantly.
–Robust Structure:
Utilizes larger leading screws and strengthened liner type guide rails for smooth and long – term operation. The strong structure design and hard – tooth – surface gear box enable it to peel both hard (e.g., birch) and soft (e.g., poplar) logs effectively.
– User Friendly Operation:
Employs a touch screen match with PLC for easy operation and setting, reducing labor costs and increasing production efficiency. – Convenient Knife System: The knife – holding system can choose mechanical fixing or high quality hydraulic knife clamping, simplifying knife change and grinding processes, and saving valuable time.
| improved strengthen model, higher standard components | stable veneer peeling performance, better veneers |
 |
 |
 |
 |
Machine Features
-Suits Different Kind Log Peeling: Suits peeling of both hard and soft logs, regardless of large or small diameters.
Adjustable speed allows for quality veneer production even with logs of sub–optimal quality.
– Precise Thickness Control: Ensures good peeling thickness accuracy of veneer sheets, meeting high – precision production requirements.
– High Speed Automatic Peeling: Delivers high – speed auto peeling with optimal peeling pressure, resulting in top – quality veneers.
– Production Line Compatibility: Can be integrated with semi-auto or full-auto veneer peeling production lines, facilitating flexible production setups.
After–Sale Services
Pre-sale Services
1. Provide free consultation to assist in selecting suitable veneer making or plywood working machines.
2. Develop a full – set plywood and veneer production solution based on production improvement or equipment upgrading needs, and offer machine drawings.
3. Furnish detailed machine technical parameters and quotations. Upon mutual confirmation, sign the purchase order (PO) or invoice.
4. Invite customers to visit workshops and witness plywood machine testing.
Services during Sales
1. Keep customers updated on the machinery manufacturing process.
2. Conduct strict quality inspection during each manufacturing and assembly stage, and perform detailed testing before delivery.
3. Offer free training on machine operation and usage, and provide user manuals to help customers master the skills.
4. Confirm custom clearance documents and prepare for delivery.
After-sale Services
1. Have engineers on standby 24/7 to solve problems promptly.
2. Provide full – life spare parts and online machine debugging support.
3. Dispatch professional engineers for installation and training services.
4 Offer overseas services for machine upgrading and maintenance.
