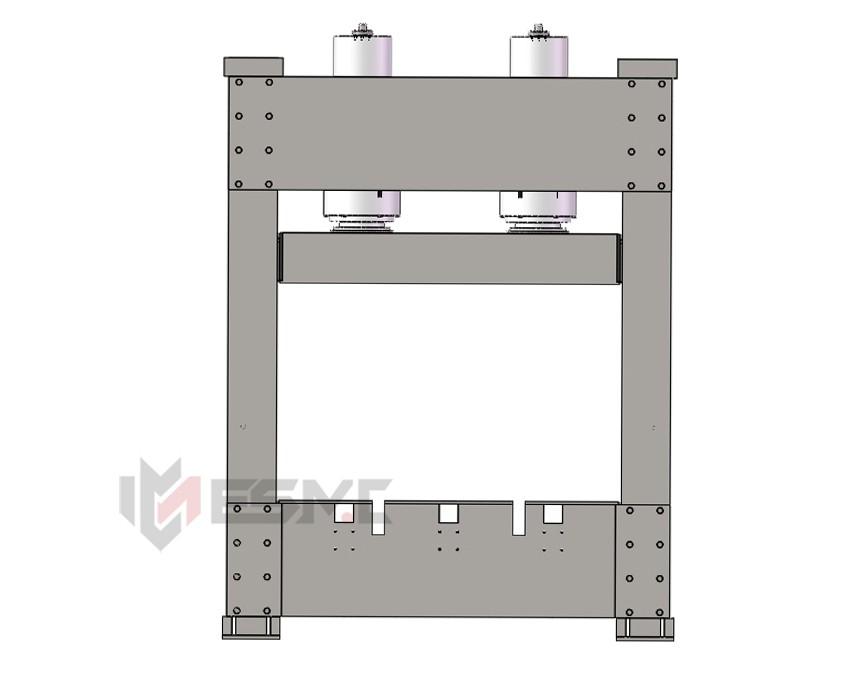

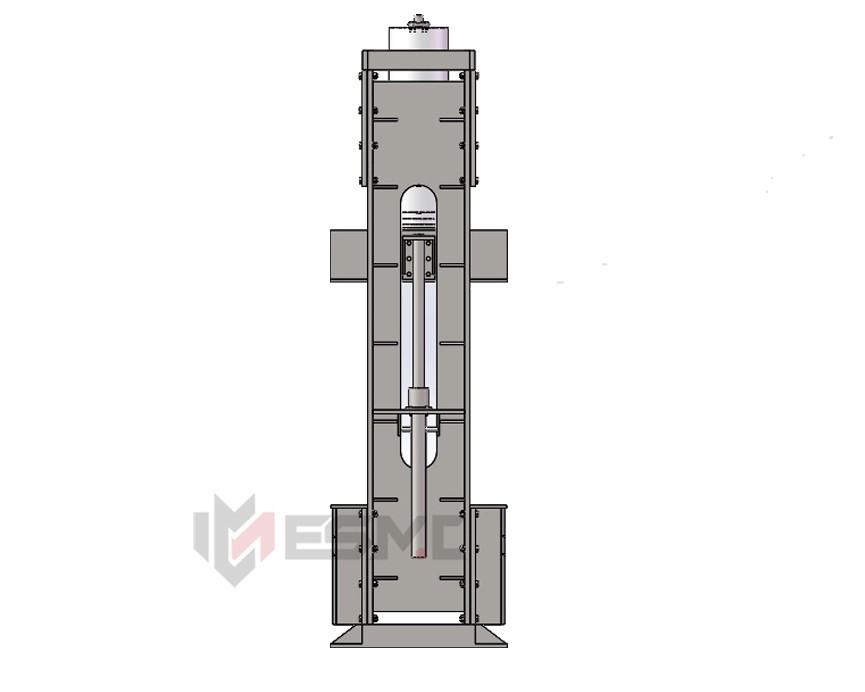

The cold press machine oil cylinder can be installed upside or the bottom sides. This cylinder upwards pre press machine can install auto chain conveyors to feed in or transfer out plywood board after finishing.
Take with heavy duty structure frames. Using 35-40mm steel plate forming the main structure. Solid oil cylinder equipped corrosion resistance oil seals to keep smooth working and no oil leakages.
Pre-press the plywood . Improve Plywood Making Procedure.
Pressure: 500T
Opening Space: 1800mm
Steel material: Q235B
Steel thickness: 35-40mm
Upper and bottom beam height: 900mm
Feed direction: transverse
Platen size: 1400*2700mm
Cylinder: 360mm*2pcs
Lifting cylinder: 100mm*2pcs
Cylinder position: upside position.
Power: about 15 kw
Dimension: 3500x1370x3800mm
Weight: 15 tons
After Sale :
Pre-sale services:
1) Free consult to help you choose suitable veneer making or plywoodworking machine.
2) Base on your production improvement or equipment upgrading needs, make full set plywood,veneer production solutions. and offer the machine drawings.
3) Offer detail machine technical parameters and quotations, after confirm each other, sign the PO or invoice.
4) Invite customers to visit workshops and test plywood machine working.
Services during the sales:
1) Updating the machinery manufacturing process.
2) Strict inspection of machine quality during each manufacture and assemble process and detail tesing before delivery.
3) Free training the machine operating and using, make the user manual help customer comand the skills.
4) Confirm the custom clearance documents and prepare delivery.
After sale services:
1) 7/24 hours engineer ready to service to solve problems.
2) Full life spare parts and online machine debugging supporting.
3) Professional engineers installing and trainning service.
4) overseas service of machine upgrading and maintance.
