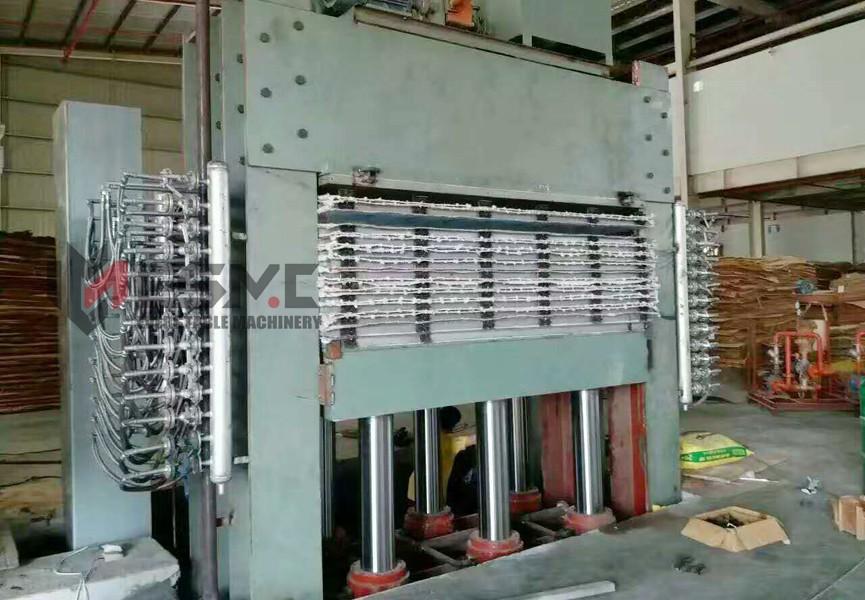

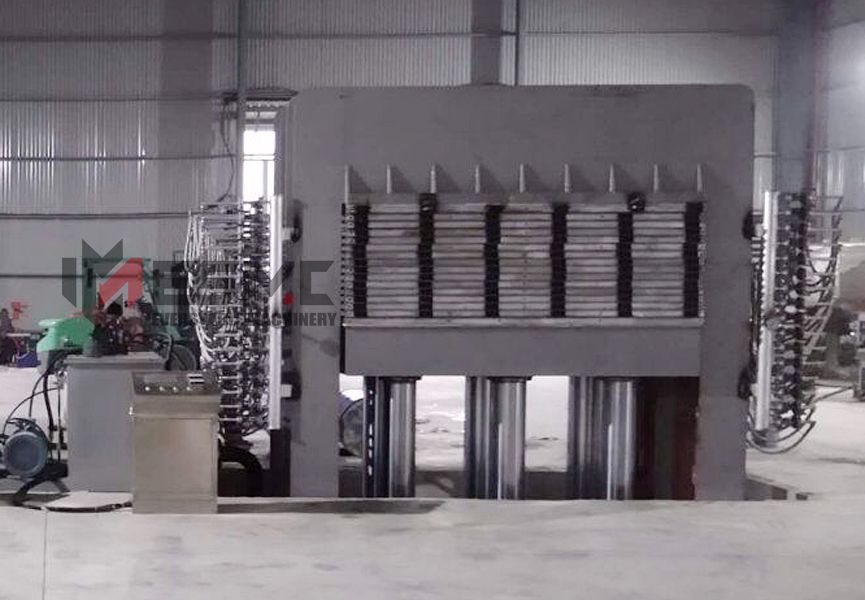

The smart control system is designed to provide precise press pressure application. It equipped a low noise quick-closing hydraulic pump station with a large flow rate, which allows for rapid pressurization and enhances production efficiency.
The machine is easy to operate, reliable, and incorporates automatic temperature and time controls and double in and out hot platen heating recycle system to ensure uniform temperature distribution across the press plates. The dual-entry and exit steam and thermal oil piping system further ensures consistent laminating pressing performance. This machine is very suit the decoration film face pressing of plywood, block board, and melamine-laminated panels.
widely used in the lamination of melamine paper onto plywood, MDF, and other engineered wood products, ensuring top-quality surface finishes.
| Model | ESBY214-8/4-10 |
| Norminal Pressure | 8000 KN |
| Rated working pressure | 800 T |
| Hot platen size | 1370*2700*52 mm |
| Plunger Oil Cylinder | 260mm*6 units |
| Work Stroke | 1000 mm |
| Pressure resistance |
≤ 25 MPa |
| Empty Load Closing Time | about 17 second |
| Low-pressure Pump Flow | 100L/min |
| Allowed Pressure |
≤ 5 MPa |
| Power | 22 kw |
| High-Pressure Pump Flow | 35 L/min |
| Board Unit Pressure | 20 kgf/cm2 |
| Power | 7.5 kw |
| Max Board Size | 1250×2500 mm |
| Machine Weight | about 40 Tons |
| Overall Size | 3600x1400x4300 mm |
| Control System | PLC, auto hydraulic pump station |
| Top and Bottom Beam Height | 900 mm. 1000 mm |
| Middle Movable Beam Height | 400 mm |
| Steel Plate Thickness | 35mm, 20mm, 12mm |
Both these machines offer precise control and superior performance, ensuring efficient production of high-quality melamine-laminated panels, and all kinds film faced plywood, block boards.
